产品照片
主要产品尺寸
*点击放大

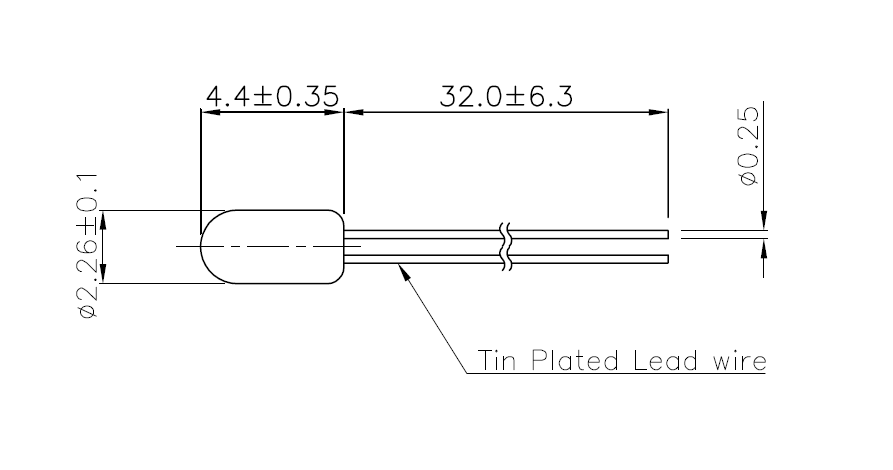

OL-7153TPL-100
- Part No.
- OL-7153TPL-100
- Bulb dia. (mm)
- 2.26
- Length (mm)
- 4.4
- Filament type
- CC-6
- Base / Assembly
- Wire Terminal
- Volt (V)
- 5
- Amp (mA)
- 115
- MSCD (cd)
- 0.15

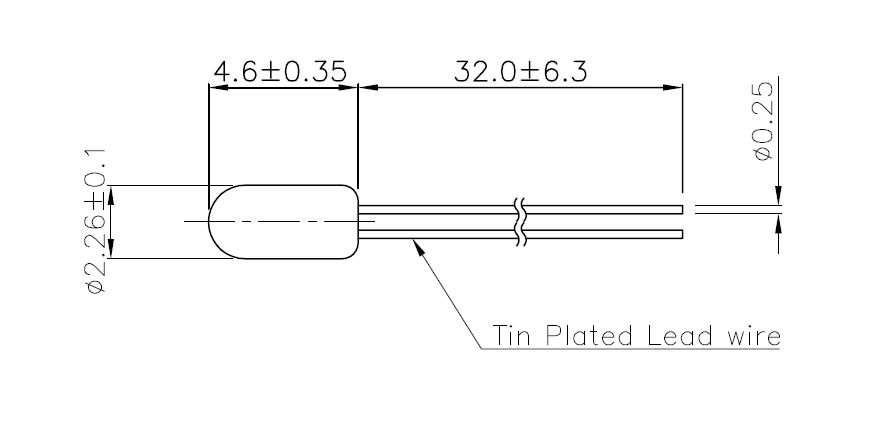

OL-7153TPL-201
- Part No.
- OL-7153TPL-201
- Bulb dia. (mm)
- 2.26
- Length (mm)
- 4.6
- Filament type
- C-2R
- Base / Assembly
- Wire Terminal
- Volt (V)
- 5
- Amp (mA)
- 115
- MSCD (cd)
- 0.15
OL-6833TPL-201
- Part No.
- OL-6833TPL-201
- Bulb dia. (mm)
- 2.26
- Length (mm)
- 4.6
- Filament type
- C-2R
- Base / Assembly
- Wire Terminal
- Volt(V)
- 5
- Amp(mA)
- 60
- MSCD(cd)
- 0.05
OL-6803TPL-201
- Part No.
- OL-6803TPL-201
- Bulb dia.(mm)
- 2.26
- Length(mm)
- 4.6
- Filament type
- C-2R
- Base / Assembly
- Wire Terminal
- Volt(V)
- 5
- Amp(mA)
- 60
- MSCD(cd)
- 0.03

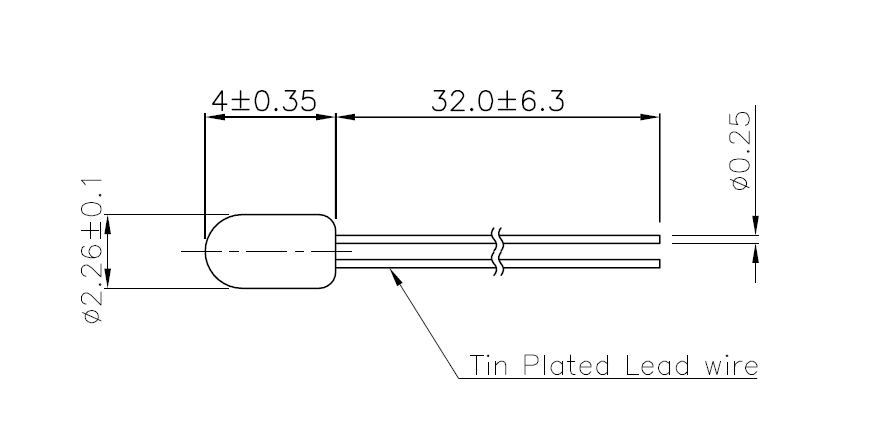

OL-2498TPL
- Part No.
- OL-2498TPL
- Bulb dia.(mm)
- 2.26
- Length(mm)
- 4.0
- Filament type
- C-2R/HCF
- Base / Assembly
- Wire Terminal
- Volt(V)
- 4
- Amp(mA)
- 65
- MSCD(cd)
- 0.04
OL-715TPL-101
- Part No.
- OL-715TPL-101
- Bulb dia.(mm)
- 3.0
- Length(mm)
- 6.0
- Filament type
- CC-6
- Base / Assembly
- Wire Terminal
- Volt(V)
- 5
- Amp(mA)
- 115
- MSCD(cd)
- 0.15
OL-715LE/TPL
- Part No.
- OL-715LE/TPL
- Bulb dia.(mm)
- 3.0
- Length(mm)
- 6.0
- Filament type
- CC-6
- Base / Assembly
- Wire Terminal Lens
Top
- Volt(V)
- 5
- Amp(mA)
- 115
- MSCD(cd)
- 0.15
OL-715TPL-200
- Part No.
- OL-715TPL-200
- Bulb dia.(mm)
- 3.0
- Length(mm)
- 6.0
- Filament type
- C-2R
- Base / Assembly
- Wire Terminal
- Volt(V)
- 5
- Amp(mA)
- 115
- MSCD(cd)
- 0.15
OL-683TPL-200
- Part No.
- OL-683TPL-200
- Bulb dia.(mm)
- 3.0
- Length(mm)
- 6.0
- Filament type
- C-2R
- Base / Assembly
- Wire Terminal
- Volt(V)
- 5
- Amp(mA)
- 60
- MSCD(cd)
- 0.05
OL-680TPL-200
- Part No.
- OL-680TPL-200
- Bulb dia.(mm)
- 3.0
- Length(mm)
- 6.0
- Filament type
- C-2R
- Base / Assembly
- Wire Terminal
- Volt(V)
- 5
- Amp(mA)
- 60
- MSCD(cd)
- 0.03
OL-715F1TPL-200
- Part No.
- OL-715F1TPL-200
- Bulb dia.(mm)
- 3.0
- Length(mm)
- 6.0
- Filament type
- C-2R
- Base / Assembly
- Wire Terminal
- Volt(V)
- 5
- Amp(mA)
- 125
- MSCD(cd)
- 0.22
OL-7152TPL-101
- Part No.
- OL-7152TPL-101
- Bulb dia.(mm)
- 3.0
- Length(mm)
- 4.5
- Filament type
- CC-6
- Base / Assembly
- Wire Terminal
- Volt(V)
- 5
- Amp(mA)
- 115
- MSCD(cd)
- 0.15

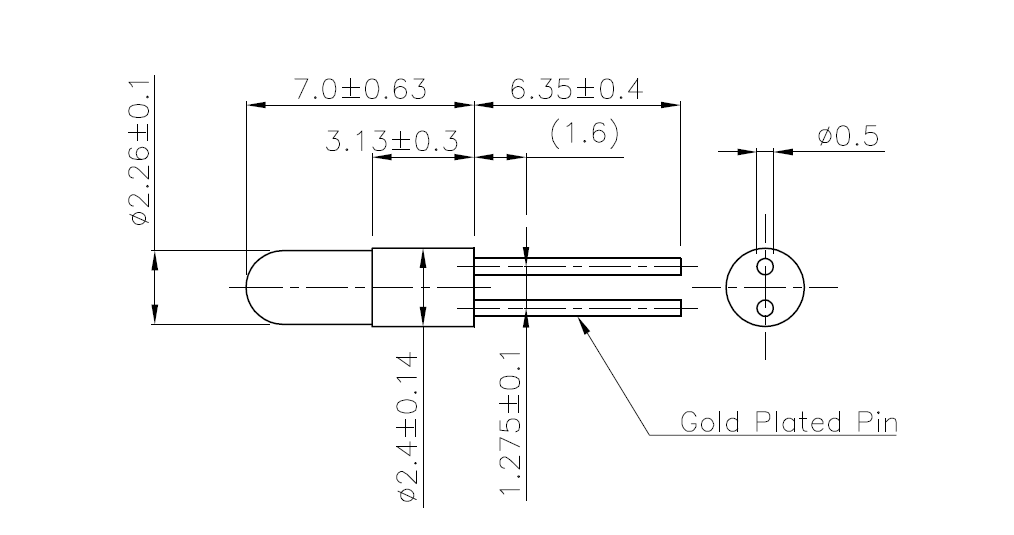

OL-8270BP-100
- Part No.
- OL-8270BP-100
- Bulb dia.(mm)
- 2.26
- Length(mm)
- 7.0
- Filament type
- CC-6
- Base / Assembly
- Bi-Pin (Standard)
- Volt(V)
- 5
- Amp(mA)
- 115
- MSCD(cd)
- 0.15
OL-8270BP-201
- Part No.
- OL-8270BP-201
- Bulb dia.(mm)
- 2.26
- Length(mm)
- 7.0
- Filament type
- C-2R
- Base / Assembly
- Bi-Pin (Standard)
- Volt(V)
- 5
- Amp(mA)
- 115
- MSCD(cd)
- 0.15

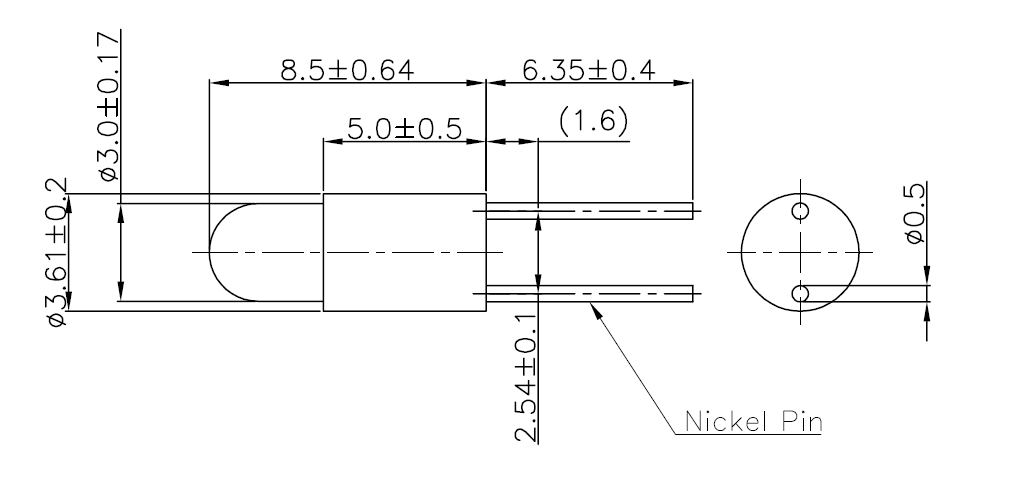

OL-718BPA-101
- Part No.
- OL-718BPA-101
- Bulb dia.(mm)
- 3.0
- Length(mm)
- 8.5
- Filament type
- CC-6
- Base / Assembly
- Bi-Pin (Type A)
- Volt(V)
- 5
- Amp(mA)
- 115
- MSCD(cd)
- 0.15
OL-718BPA-200
- Part No.
- OL-718BPA-200
- Bulb dia.(mm)
- 3.0
- Length(mm)
- 8.5
- Filament type
- C-2R
- Base / Assembly
- Bi-Pin (Type A)
- Volt(V)
- 5
- Amp(mA)
- 115
- MSCD(cd)
- 0.15
OL-718BPE-101
- Part No.
- OL-718BPE-101
- Bulb dia.(mm)
- 3.0
- Length(mm)
- 8.5
- Filament type
- CC-6
- Base / Assembly
- Bi-Pin (Type E)
- Volt(V)
- 5
- Amp(mA)
- 115
- MSCD(cd)
- 0.15
OL-718BPE-200
- Part No.
- OL-718BPE-200
- Bulb dia.(mm)
- 3.0
- Length(mm)
- 8.5
- Filament type
- C-2R
- Base / Assembly
- Bi-Pin (Type E)
- Volt(V)
- 5
- Amp(mA)
- 115
- MSCD(cd)
- 0.15

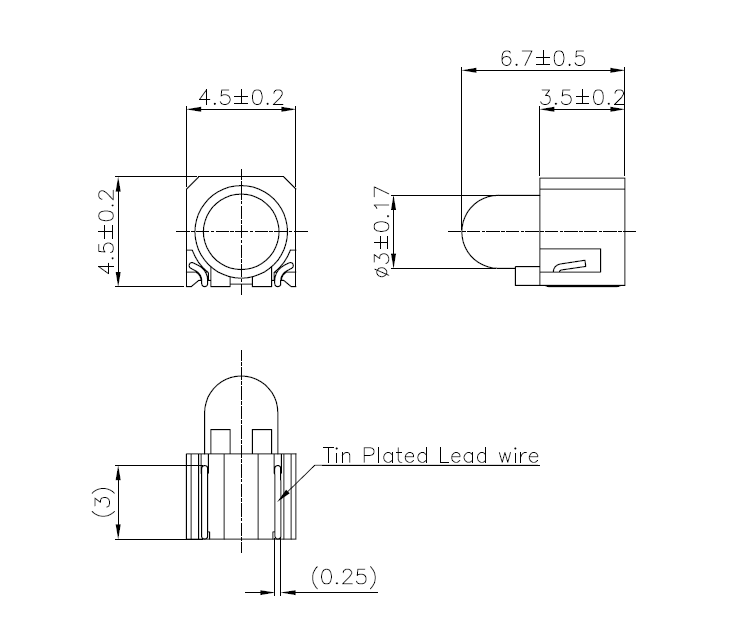

OL-718SMC/H-101
- Part No.
- OL-718SMC/H-101
- Bulb dia.(mm)
- 3.0
- Length(mm)
- 6.7
- Filament type
- CC-6
- Base / Assembly
- Horizontal SMD Base
- Volt(V)
- 5
- Amp(mA)
- 115
- MSCD(cd)
- 0.15
OL-718SMC/H-200
- Part No.
- OL-718SMC/H-200
- Bulb dia.(mm)
- 3.0
- Length(mm)
- 6.7
- Filament type
- C-2R
- Base / Assembly
- Horizontal SMD Base
- Volt(V)
- 5
- Amp(mA)
- 115
- MSCD(cd)
- 0.15

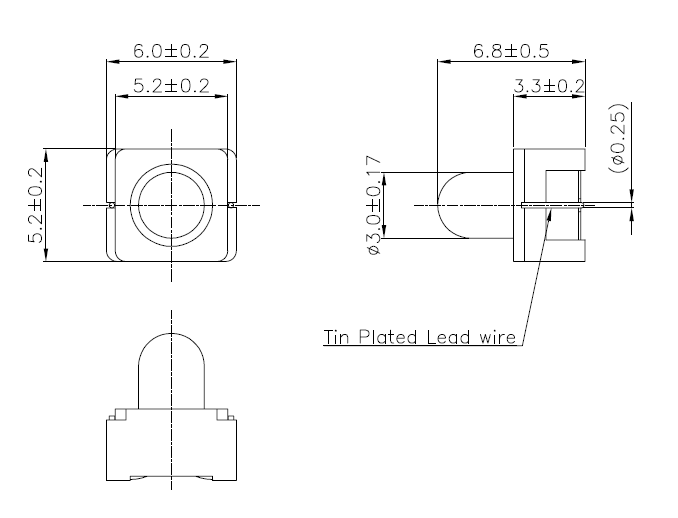

OL-718SMC/V-200
- Part No.
- OL-718SMC/V-200
- Bulb dia.(mm)
- 3.0
- Length(mm)
- 6.8
- Filament type
- C-2R
- Base / Assembly
- Vertical SMD Base
- Volt(V)
- 5
- Amp(mA)
- 115
- MSCD(cd)
- 0.15
